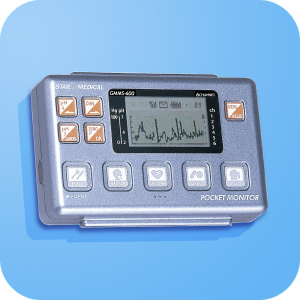

pankuzu_spc-2.png HOME > Product Guide > PocketMonitor > GMMS-600


  • Allows 4-channel internal pressure and 2-channel pH measurement with body tilt sensing.
  • Ambulatory type capable of 36-hour logging (8 Mb flash memory).
  • Displays data on an LCD in real time.
  • Sample rate:-for pressure measurements; 100 ms. / -for pH; 100 ms at the initial 5 minutes of calibration; afterwards 1 s (automatically be calibrated after 5 minutes).
  • Displays 6-channel data on your PC screen in real time when it is set on a dedicated data transfer box.

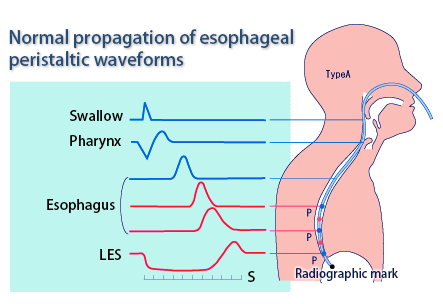

title-bar1.pngAssessment of esophageal pressure propagation

The assessment of esophageal pressure provides a clear view of swallowing and peristalsis occurring within the esophagus of a patient who complains of symptoms such as feeling of globs or distention in the chest, dysphagia, and/or severe chest pain.


title-bar1.pngMajor symptoms involving esophageal pressure propagation disorder



Achalasia (cardiac spasm)
No LES relaxation is observed. Both esophageal and LES pressure are high, and increased pressure can be seen concurrently with a water swallow.

GERD
Impaired esophageal motility function and a transient LES relaxation for 10 or more seconds are observed.



Nutcracker esophagus
Although its contractile pressure seems normal, the esophagus contracts abnormally and shows increased pressure as high as equal to or more than 200 mmHg, accompanied by severe chest pain.

Sliding hiatal hernia
Components showing the LES and the esophageal hiatus are separated to wider extent than those seen in normal LES waveforms. Internal pressure values can be measured with a sensor, which is located at the LES and then pulled through. The length of the LES itself is also elongated. Normally, LES pressure ranges from 15 to 30 mmHg, and the length of LES would be approximately 2-4 cm.
