GMMS-2001pH / GMMS-2002pH

Enables 24-hour ambulatory pH recording
Patient-friendly; small and light (155g)

Classifies the degree of acid exposure into 4 categories, using the time ratio of acid reflux assessment less than pH 4 based on AFP score (see reference below)
Even after the administration of PPI, there exist some cases that the GERD symptoms, such as heartburn, can still be observed.
In such cases, pH monitoring acts as an effective means to assess the acid reflux more carefully.

catalog downlorad_icn4.png7_space.png

7_space.png2ch pH ch.png

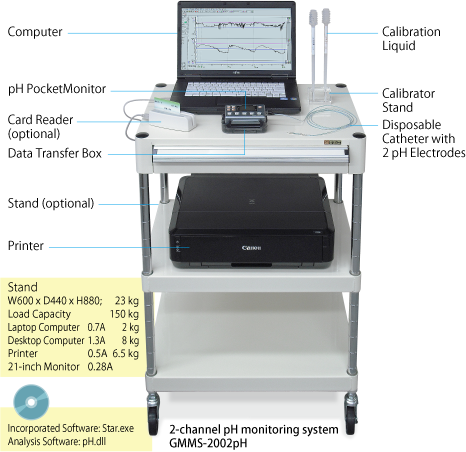

title-bar1.pngAll the paraphernalia for pH monitoring system with 2 channels

Components
PocketMonitor(GMMS-200pH) 1
  Data Transfer Box(GMMS-TB) 1
  Interface
1
  Incorporated Software / including installing fee
1
  Analysis Software
1
  Disposable Catheter with 2 pH Electrodes
1
  PC & Printer
1
  Accessories (pH calibration liquid, calibrator stand, connector cable, carrying bag)
1
  (Optional) Card Reader, Stand






ComponentsComponents

(Reference)
International Criteria for Esophageal Acid Exposure Symptoms (Time ratio of pH 4 or less).

  Exposure Time Ratio Classification
  Less than 4% Normal
  Less than 8%  Mild acid exposure
  Less than 20%  Moderate acid exposure
  20% or more  Severe acid exposure
 AFP classification proposed by International Society for Diseases of the Esophagus (1992 ISDE)
